Pipe sizing hydraulic limit values

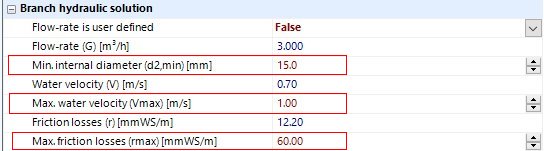

For each pipe-branch you must define the three basic limit values :
  • Min.internal pipe-diameter (d2min)
  • Max. Water velocity (Vmax)
  • Max. friction losses (rmax)
These limits values take part in the automatic pipe-sizing of the pipe-branch.
Limit values get the default project hydraulic limit values each time a pipe-branch is added to a project.
