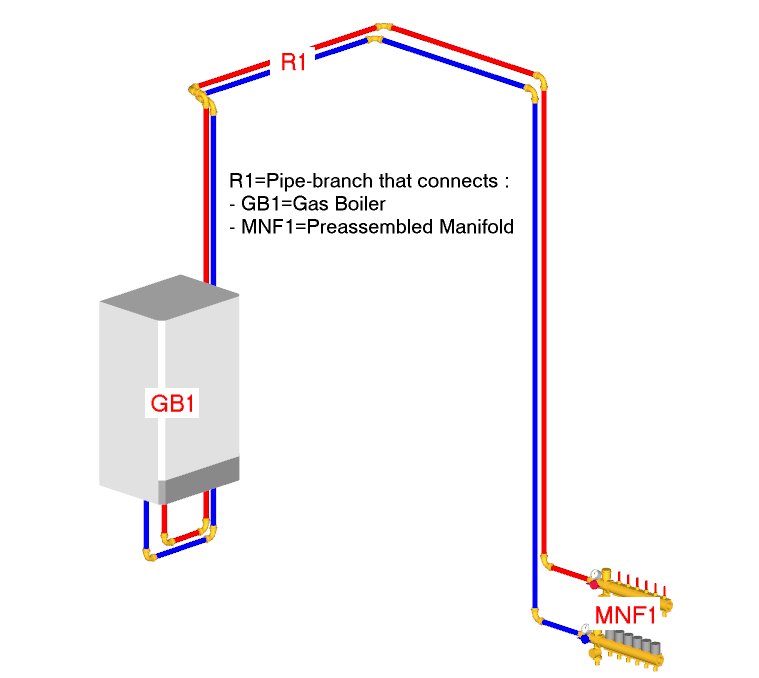

The heating objects of a hydronic heating installation are interconnected by pipe-branches.
The double-pipe object inherits from Piping system object

Practically speaking a pipe-branch is composed of :

• N1 Connection-pipe elements (N1=16 for the above image)
• N2 Pipe-fitting elements (N2=14 for the above image)

It is very important to remark tha all the connection-pipes elements of a pipe-branch have :

• the same hydraulical properties like pipe DN , flow-rate etc.
• different geometric properties like vetrexes, lenght etc.

Connection-pipe element

Pipe-fitting element
